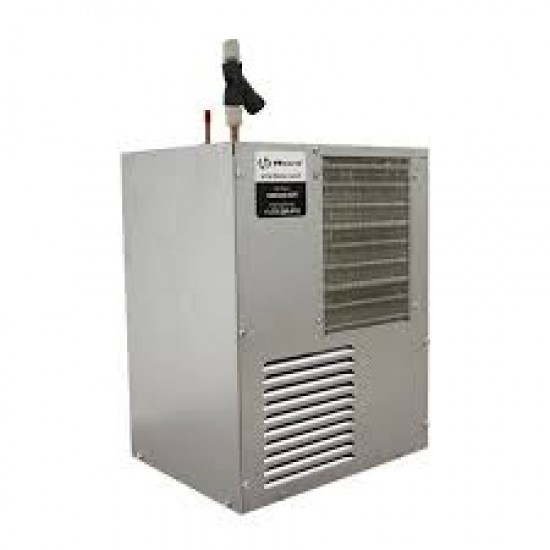

Model HCR8 remote chiller is a hermetically sealed R-134a refrigeration system and is capable of supplying water to a maximum of 2 bubbler stations and is designed to provide 8 gph (30.3 L) of water at 50° F (10° C) +/- 5°. The unit is rated at 220 V, 60Hz, and 5 amps. NOTE: For remote installations; locate unit no more than 8ft (2.4m) away from fixtures which it supplies. Chilled water tubing/piping run must be covered with appropriate insulation in order to conserve temperature and avoid condensation.
This remote chiller can provide 8 gallons per hour of 50° F +/-
5° cold water to a wide variety of fountains. Specifically, this
type chiller may be used in conjunction with a fountain in
settings such as: schools, office buildings, shopping malls, and
other indoor environments where there is a demand for a
chilled water source. Electric water coolers are not
recommended or designed for outdoor applications or
enclosed pool areas (chlorine). These conditions may void
warranty. Haws manufactures drinking fountains, faucets and
electric water coolers to be lead-free by all known definitions
including NSF/ANSI/CAN 61-Section 9, NSF/ANSI/ CAN 372,
California Proposition 65, and the Federal Safe Drinking Water
Act. Product is compliant to California Health and Safety
Code 116875 (AB 1953-2006), and NSF/ ANSI/CAN 61: Q ≤ 1. It
complies with ASHRAE 18 compliant chilling capacity, and is
listed by Underwriter Laboratories to U.S. and Canadian
standards.
- Stock: In Stock
- Model: HCR8
- Weight: 0.00kg
